Design of Runner and Gate

The runner system is the passage way for plastic material to move from the sprue to the entrance. The runner technique is extremely important with respect to filling cavities. In the event the runners are extremely small in size the mold cavities will not likely fill properly. If the runners are too big, then the cooling time will probably be increased and cycle time reduced. Suitable runner design can reduce the negative impacts of stress, sink and weld spots.

Runner

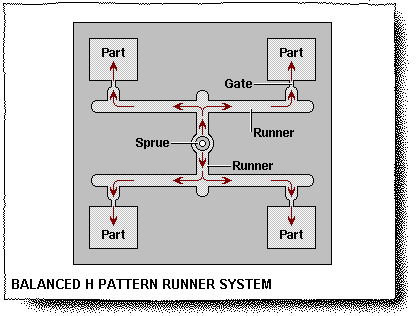

[ezcol_1half] The illustration reveals a well-balanced H layout runner system employed to mold four rectangular chips. The arrows display the plastic material move from the sprue via the runners, entrances, and directly into the cavities. What’s so great about the proper H layout will probably be discussed afterwards. D2-02

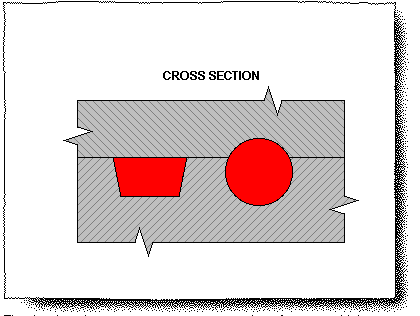

Two of the most common runner types available today are the full spherical and the trapezoidal. The entire spherical style is used in most cases.D2-03

The sketch shows a cross section view of a entire spherical runner produced directly into the P/L(parting line) of a mold base. Be aware that half of the runner is in the top plate and the other half of the runner is incorporated in the bottom plate. The runner is stripped out of the mold base with the molded part.D2-04

A skin of plastic material  gets frozen against the cooled mold surface and causes melted plastic to flow via the core of the runner. The spherical runner provides the least amount of scrubbing to its volume, least pressure drop, ideal movement, and is the simplest runner to remove from the mold. Nonetheless, more works and skill matching the runner into both mold halves is needed.D2-05

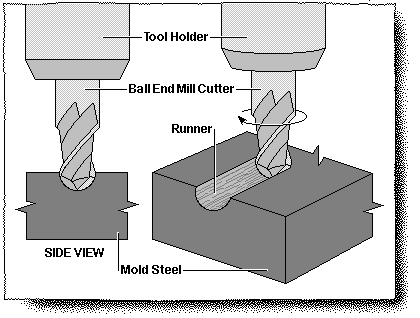

[/ezcol_1half][ezcol_1half_end]This illustration represents the method employed to engrave one half of the round runner into the mold steel .A very hard ball end mill cutter and its fixer are spun in the spindle of a milling equipment. The cutter marks left over the runner surface must be eliminated through polishing with rotary abrasives.D2-06



The spherical runner dimension is decided by the species of plastic material employed to mold the component. A lot of mold developers depend on client or plastic material resin provider in order to indicate dimension. The runner dimensions vary from 3/16 in order to 3/8 . Big size runners decrease strain, bending, and sink scars. Nonetheless, runners have to be possible small in order to decrease injection dimension and cycling time.D2-07

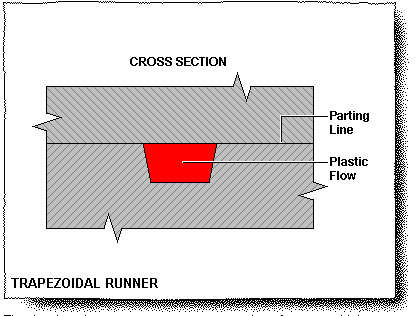

This sketching shows a cross-section of a trapezoidal runner engraved directly into the P/L of a mold base. Be aware that the entire runner is engraved in one plate. The runner is stripped out from the mold base along with the component.D2-08

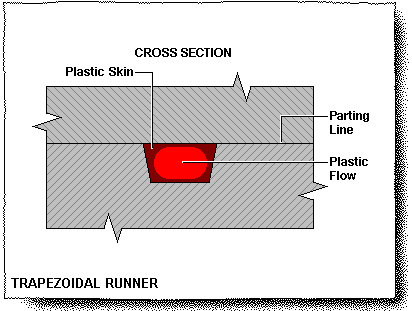

A plastic material skin gets frozen contrary to the cooled down mold surface and results in melted plastic material to move via the core of the runner. Despite the fact that trapezoidal runner is simpler to engrave because it is machined into just one plate, this particular advantages could be outweighed through the more move constraint. Choice of this runner could be for the Three plate mold or plastic mold that might not permit a entire spherical runner structure.D2-09
[/ezcol_1half_end]

Categories
plastic mold company

Mold Base Technology

Mold Base Technology

[ezcol_1half]

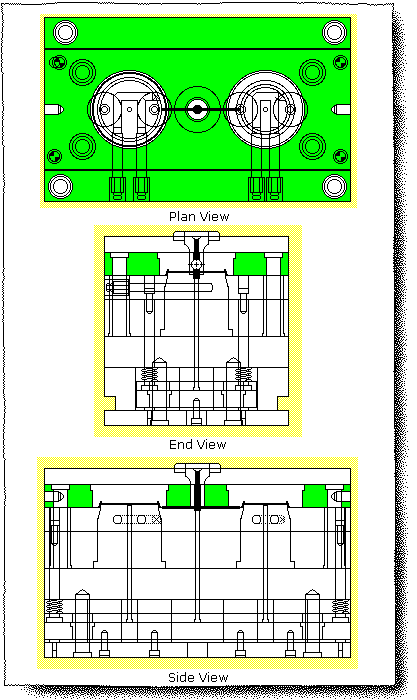

B1-02



Cavity Plate, A Plate
This plate holds the cavity in the mold. Its thickness is normally decided by the “depth” of the part. The runner system and gating are sometimes machined (half) in the surface of the plate. This surface is also the parting line surface and “shut off” (sealing) must be obtained or flash will occur.



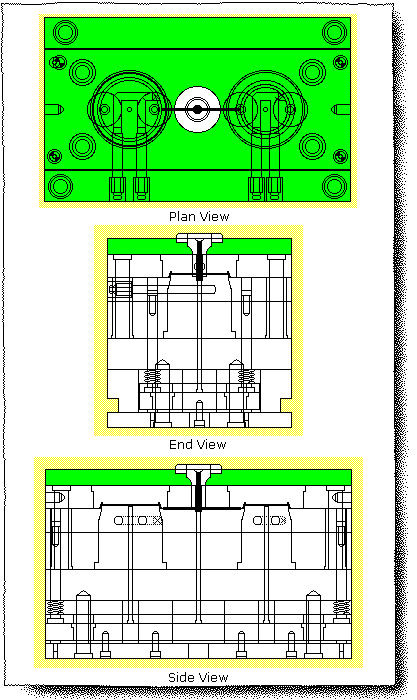

B1-03

Core Retain Plate, B plate
This plate holds the cavity in the mold. Its thickness is normally decided by the “depth” of the part. The runner system and gating are sometimes machined (half) in the surface of the plate. This surface is also the parting line surface and “shut off” (sealing) must be obtained or flash will occur.

B1-04

Top clamping Plate
This plate holds the cavity in the mold base. Its thickness is normally decided by the “depth” of the part. The runner system and gating are sometimes machined (half) in the surface of the plate. This surface is also the parting line surface and “shut off” (sealing) must be obtained or flash will occur.

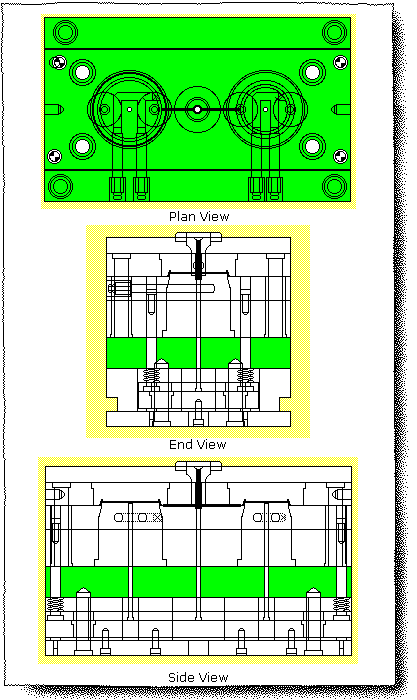

B1-05

Supporting Plate
The primary purpose of the supporting plate is to reinforce the mold during injection. It is actually a thicker plate that will not bows during the injection stage of the molding process. The ejector mechanism (pins) moves though the supporting plate.

[/ezcol_1half]

[ezcol_1half_end]

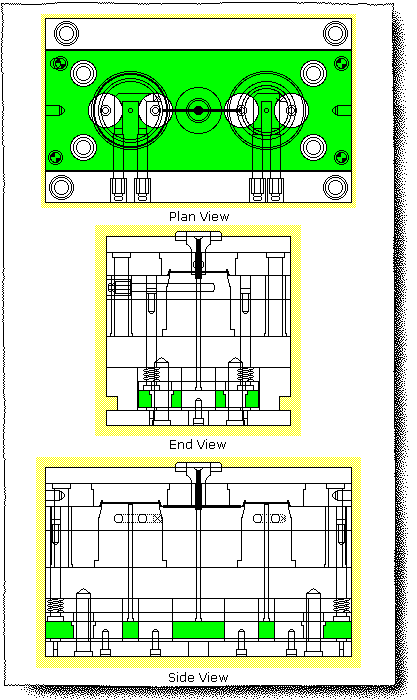

B1-06

Ejector bottom  Plate
The actual ejector plate stands out as the floating plate during the ejector process. Its thickness is determined with the level of pressure necessary to remove the component and the part/mold dimension. This plate furthermore fastens the ejector system (pins or plate) inside the ejector retainer plate.
B1-07
Ejector top  Plate
The ejector bottom plate is adopted in a mold to fix the ejector system (ejection pins, return pins, and so on) on the ejector plate. The retainer plate is head recessed  for every pin. The pin bottoms change to be flush with the back  on the plate and also the ejector plate then fastens straight to the retainer plate. In the course of ejection, the retainer plate “draws” the ejector system (pins) to its original position.

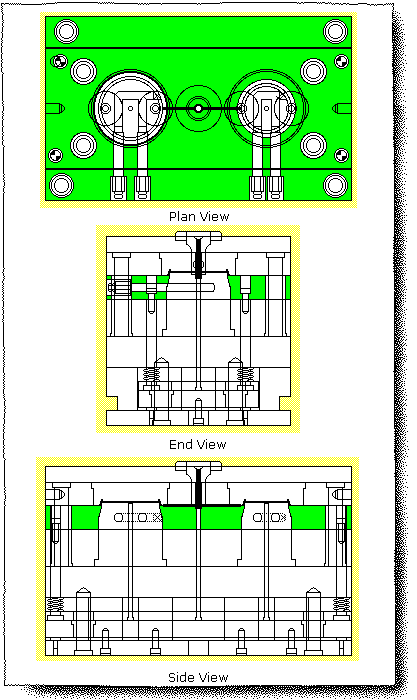

B1-08
Stripper  Plate
The stripper plate is usually an ejector system employed to aid in component stripping. This plate is mounted on the ejector return pins and actuated traditionally. The plate thickness is determined with the pressure necessary to take away the component. The cavity shape should be precisely machined in to the stripper plate to prevent extreme tool wear and enable the stripper plate to “stay” properly whenever it’s retracted.


[/ezcol_1half_end]



Categories
injection mold components suppliers

quickly manufacturing injection molded components

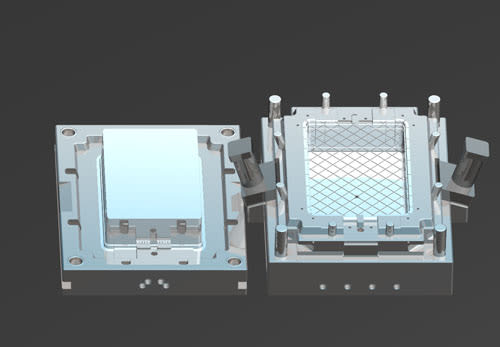

In terms of quickly manufacturing injection molded components, there are many important aspects to think about. Listed below are some from the best considerations to begin off around the proper track:

Design and style

bannerAll effective injection molding applications commence with correct design and style for the procedure, and within this case for fast production. When designing your component for speedy injection molding, probably the most crucial elements that contribute to lead time are component size and complexity. Anytime a bigger element may be broken down into smaller sized pieces then assembled, you’ll potentially shorten lead time. This really is  easy, shallow cavity styles are created faster through the CNC machining method. Designing components which can be moldable having a ‘Straight Pull Mold’ is a superb spot to begin. This demands that each of the pars functions be developed in order that when the two halves in the mold are pulled from one another as well as the element is ejected, you’ll find no secondary processes needed. This really is as a result of mold material’s tendency to pull by means of component plastic ,this can be known as an ‘undercut’.Undercuts need mold pieces to pull out sideways, perpendicular towards the path in the pull. These side actions  as they’re referred to as can demand hand loads for reduced volume projects or automatic/mechanical loads for larger runs.

Material

Best rapid turn projects ought to make use of regular, off the shelf supplies and colors which are either currently on hand or may be swiftly sourced from a material distributor. Typically, lack of require for name brand material doesn’t trigger problems, but this can be not the case for all projects. When a precise brand and kind of material is needed, the material could be ordered and shipped although tool cutting happens simultaneously. Must the material not arrive inside the allotted window, a substitute material can occasionally be employed in location in the production material to, in the extremely least, confirm simple design and style and function from the component. When production material arrives, a second sample run can take spot prior to proceeding with greater production runs.

Price

Obviously when there’s a lead time requirement for components faster than the regular, you’ll need price considerations. These considerations are driven by further man hours needed by the project up front and frequently outcome in overtime and extended shop hours to attain the preferred ship date. These products that may be sped up? Issues including tool style, steel or aluminum delivery towards the shop, component material ordering, and scheduling sample production runs.

Categories
plastic mold company

How to decide a draft

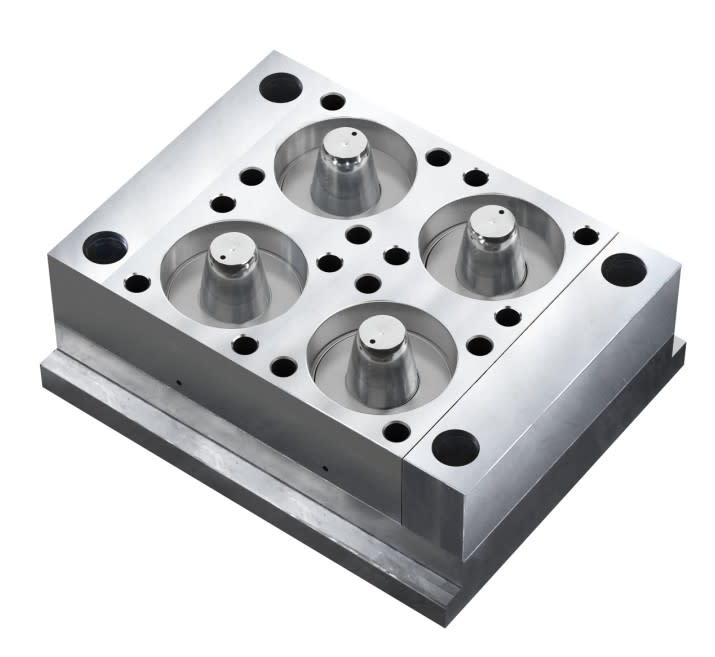

2011-11-13-03-32-06Among the most typical concerns we’re asked is “How to decide a draft I want to the texture that I want”
The basic rule of thumb is the fact that you permit for 1.6 degrees of draft for every .001 inch of texture finish depth. Nevertheless, you will find other concerns that should be taken under consideration as a result of the numerous new resins and polymers, molding enhancements, and different other aspects that come into perform in contemporary plastic molding. Examples of scenarios that demand extra draft are thin wall component design and style and large strain molding.

Some essential concerns to help keep in thoughts are:
Will be the vertical wall in query an inside or outside wall? If it really is inside wall, the element will shrink onto it in the course of molding, which means you will want a lot more draft to be able to apply a texture, or apply the texture at a lighter depth.

Specific plastics have really tiny shrinkage and can consequently not shrink far from outside walls as very easily as other plastics. Thermosets, Ryanite, Glass Filled PA, Glass Filled PP, ABS, PC, and so forth. will typically demand a lot more draft as a way to mold elements without scuff or drag marks.

In the event the core is extremely easy, and there’s absolutely nothing within the core to hold the component in spot in the course of ejection, the element will have a tendency to hang onto the cavity, making scuff marks. The component might demand much more draft, or possibly texture might be utilized towards the core side. This assists hold the element onto the core in the course of ejection.

Categories
injection molding plastic mold company

Injection Molding Method and cycle

custom-injection-banner1

Injection Molding Method

With injection molding , the gravity deliver the granular plastic from a hopper right into a heated barrel. Since the granules are gradually pushed forward by a screw-type plunger, the plastic is forced right into a heated chamber called the barrel where it really is melted. As the plunger advances, the melted plastic is forced through a nozzle that seats towards the mold sprue bushing, enabling it to enter the mold cavity by means of a gate and runner method. The mold stays at a set temperature so the plastic can solidify virtually as soon as the mold is filled.

Injection Molding Cycle

The sequence of occasions throughout the injection molding of the plastic component is termed the injection molding cycle. The cycle starts once the mold closes, followed from the injection of the melt polymer to the mold cavity. When the cavity is filled, a holding pressure is maintained to compensate for material shrinkage. From the following stage, the screw turns, feeding the subsequent shot to the front screw. This triggers the screw to retract since the next shot is ready. As soon as the element is sufficiently awesome, the mold opens and also the portion is ejected.

Categories
injection moldingh plastic mold company

What is injection molding ?

injection molding vendorWhat is injection molding and What are the features about injection molded plastics? This approach allows suppliers to create goods of more challenging and elaborate shapes that could be too hard or costly to machine. The injection molded plastics procedure furthermore facilitates a large number of items to get created all at once using the same mold. Additional advantages comprise significant processing rates, decreased workcrews expenses and higher repeat tolerance, plus there certainly is minimal require to do whatever to finalize the part once it is usually molded. The untouched plastic pellets and runners can also be reprocessed for potential future molding therefore there is virtually virtually no waste product.
if you would like bulk construction for intricate objects,the injection molding is a good determination ,and the upcoming show few already mentioned and unmentioned.* Injection molding allows for significant manufacturing output ranges.
For a few particular usage ,you could possibly fit an insert into tooling or even add in addictives for strenght consideration
you can get exactly the same dimension and outlines for objects
We might benefit from over-mold to build the items for different color choice and varied substance in the mean time.
Commonly,we’d like uncommon effort for second operation immediately after injection molding,as well as the items finish is actually very same.
*Most scrap may well be reground that can then be used again, consequently there may be little waste.
* Whole automation may be accomplished with the help of Injection Molding.

Categories
plastic mold company

Blog

NX part: M11-7.6Staying a full services offer for china plastic injection molding business and main company in plastic mold and plastic injection molding section,we could fulfill your different quantity demands with regard to shots from Five hundred to thousands and thousands parts.our strenght is ideal for heavy duty and consumer plastic mold constructing and plastic molding.Custom injection molding and mold building are main services which are available from us,and our goods fields includes:OEM mold producing,construction,consumer , motor vehicle ,agriculture or any other machine made work pieces.we would produce numerous plastic molding work pieces,which enable it to have capacity for shot sizes from 1.2 oz to 44 oz. for injection molded parts and up to 8 KG. meant for blow molded parts.We make use of SolidWorks for part and mold building design- one hundred percent centered on item design, SolidWorks aids producers get products to market faster with more precise and effective products designs. Converting what you want much faster for on-time shipping.

Usually in the mold constructing procedure, it is possible to offer rapid prototypes employing 3D printing and thermoplastic technology and review all aspects of mold design along with the user, complete with procedure and plastic mold troubleshooting, to be certain a high-quality, accurate mold everytime.
