Cooling plastic mold company

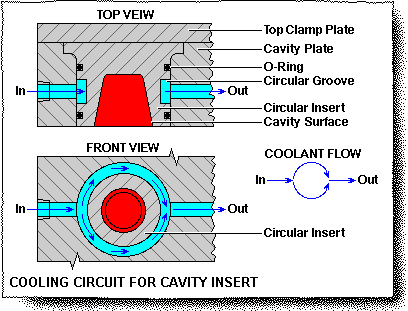

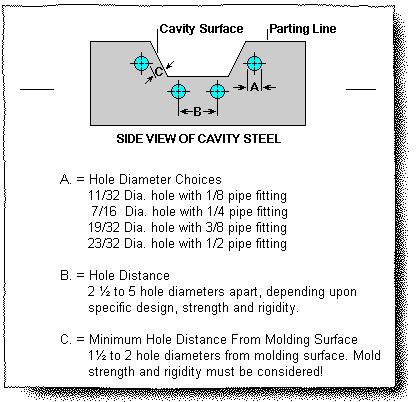

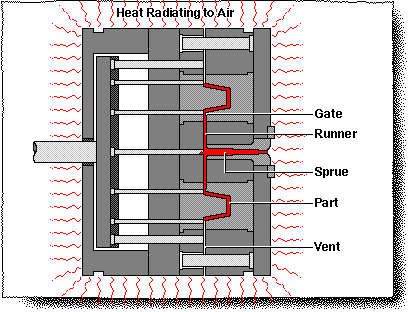

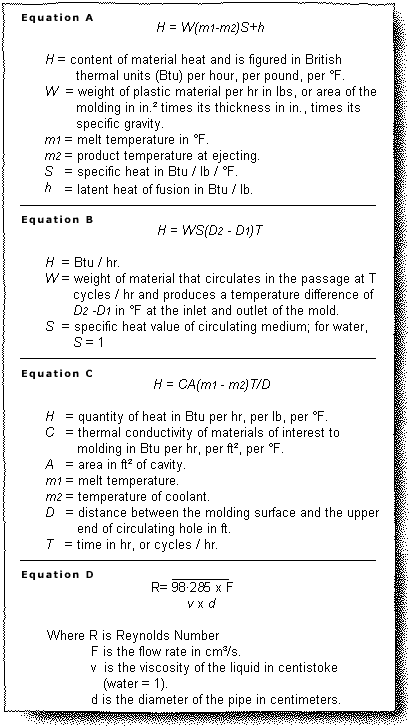

Cooling

[ezcol_1half]

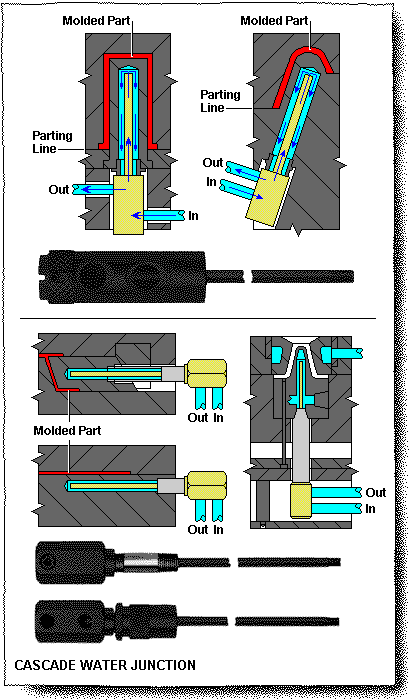

Bubbler tubes are generally employed to allow them to cool tiny inserted cores, or spot cooling with hard to arrive at regions. Inlet(waterin) and outlet(waterout) holes are generally machined within the support plate. The inlet tapped hole is to obtain a threaded bubbler tube. cool medium moves inside, go up the bubbler tube, across and cools along the way downward, then get out of the hole supplied
F2-17
Brass diverting plugs permit the mold developer to guide or change the coolant movement via the water ways as preferred. The plugs are usually pushed within the water ways to the preferred position, and brass rods are usually machined to work as spacers or stops among the plugs. Pressure plugs shut each side.
F2-18

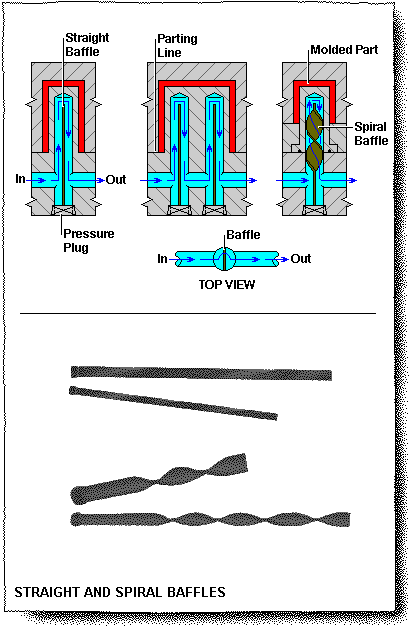

The performance of the baffles demonstrated below is to separate the coolant channel to 2 semi-circular channels. When the coolant goes inside, the baffle diverts the movement up and across the baffle, next downwards and out. Spin baffles make a turbulent movement within the channel delivering stability and effective cooling.
F2-19
Thermal pin heat up conductors are usually employed inside cores, core slides besides other regions of a mold, where demand cooling or manipulated temperatures. They exchange heat quickly to the cool medium as demonstrated below, as an alternative to moving coolant towards a heated region. Commonly employed in location of bubblers, baffles, together with water fountains.
F2-20

[/ezcol_1half]

[ezcol_1half_end]

Copper alloy pins likewise exchange heat to the cool medium, however do not exchange heat as fast as thermal pins. Aside from copper, beryllium- copper might be employed. The complete core insert could be made from a copper alloy. Heat is shifted from the molding region to the cool medium channel. It is employed where bubblers, baffles, plus water fountains would be a structure trouble.
F2-21

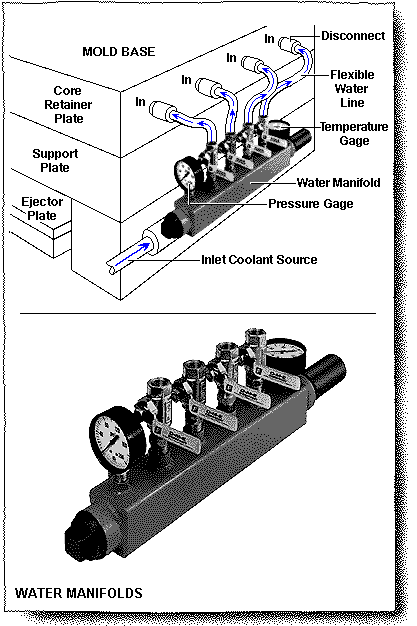

The illustration below symbolizes a water manifold to be employed in order to handle coolant movement, temperature conditions, and stress within the mold core retainer plate. The contacts to the cool medium  might be on the opposite or the identical part of a mold base. Water manifolds may also link the mold cavity retainer plate.
F2-22
Water fittings give a way for the mold maker to “swift” link the coolant to the mold cavity or mold core steels. The ¬†adaptable coolant hose pipe demonstrated below is really a fast and adaptable way to make contacts for water cooling. A solid system utilizing water manifolds may also be used in the event that preferred.
F2-23

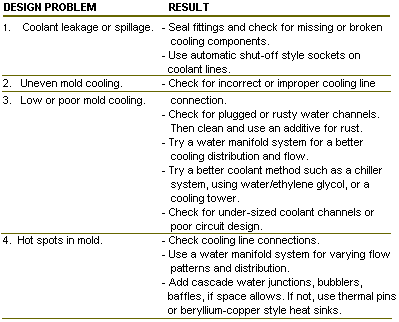

The chart identifies prevalent mold cooling challenges and usual solutions:
F2-24
