Once the hot polyester resin goes into the mold it ought to be cooled quickly. Cooling permits the molded component which will keep its preferred pattern when it’s demolded out of the mold. When cooling isn’t offered ,the hot polyester resin may normally heat up the mold steel to a level ,so component cooling to a solid  form may not be attained. Mold temperature is quite crucial, since it controls a great part of the general cooling cycle. You will find methods that mold cooling occurs.

The sketching demonstrated below symbolizes the cross-section of a mold base together with the molded component and its runner structure. The hot polyester resin may heat up the adjacent mold steels. one part of this heat may be carried out directly into the machine platens and some other heat may radiate directly into the air all around the mold base.
F2-03
This sketching symbolizes the cross-section of a mold base together with the molded component and its runner structure. Water ways are machined into the mold cavity and core plates. This lets moving water to get rid of heat within the molded component by convection. water ways temperature, movement, and pressure might be controlled.
F2-04
This sketching symbolizes the cross-section of a mold base together with the molded component and its runner structure. water ways are machined within the cavity and core plates. This lets a moving water/ethylene glycol mixture to get rid of heat within the molded component by convection. This mix is employed for excessive cooling demands and needs a chilling appliance.
F2-05



Heat moves from a increased temperature body to a reduced temperature body. The temperature variation and the level of heat decides the movement. The larger the variance among the 2 bodies in temperature the higher the movement speed among them. Such a heat exchange transferring occurs from hot plastic resin contact to steel and after that to water water ways. The cooling effectiveness of a mold depends on the species of coolant employed, coolant pressure, movement speed and coolant conditions. The mold materials employed also have diverse heat conductivity.

A lot of mold manufacturers decide cooling demands by old knowledge. Some mold manufacturers decide cooling demands by employing a zone cooling strategy. A certain coolant hole dimension may zone cool a given diameter along the coolant hole. Mold cooling demands might be determined and you will find software applications programs to make ease of the time and job required using calculations. The next content may provide you with a better idea of what is required for calculations:

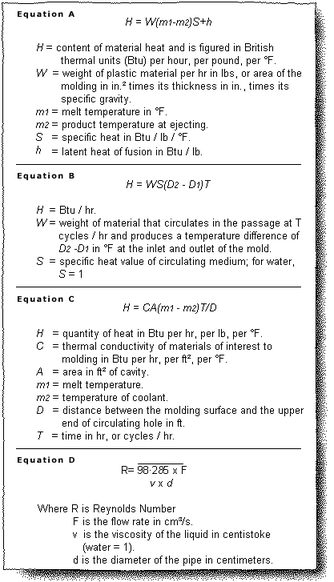

  • Equation A is made for figuring out the heat content of plastic material materials going into the mold.
  • Equation B is employed to determine convection, or the capability of a medium which will transport heat from one location to another.
  • Equation C is made for the computation of transferring or switching heat from 2 bodies in contact.
  • Equation D is most likely the Reynolds number formula. It is chosen to possess a turbulent coolant movement via the cooling water ways to allow them to gain improved heat exchange. The Reynolds number is really a way of measuring turbulent flow.

F2-07

Designing the correct cooling structure for a given mold involves a lot of parameters. The mold developer ought to take into account:

  • Variety of plastic resin and its soften conditions.
  • Variety of coolant which will use.
  • Position of water ways.
  • Dimension, quantity, and amount of water ways.
  • Position of water ways within the mold
  • Efficiency of heat exchanger to be chosen.
  • Client cooling requirements and demands.

F2-08

[/ezcol_1half]

[ezcol_1half_end]

Polyester resin flows improved when heated up, but is cooled off as it moves past the water ways all around the cavity and core. Consequently, a perfect molding conditions ought to be held by manipulating the coolant conditions, pressure and movement speed. In case practical, the arriving coolant should cross the hottest molding areas initially, and after that cross the cooler mold areas.The illustration reveals a cooling layout for a thin, not deep, sole cavity mold. Equivalent coolant water ways are machined within the mold steel, and a tapered water line thread is utilized on each end, for convenient remove water line fittings. Heat is eliminated as the coolant moves across the channel.

F2-09
This illustration symbolizes a cooling layout for a not deep, sole cavity mold. water ways are machined as demonstrated below. Each hole entrance is machined and tapped for a tapered water line thread and a tapered water line plug should be considered which will stop the movement and direct or deliver the coolant in directions required which will move close to the component cavity in order that most walls of the cavity will be cooled off.

F2-10

This illustration symbolizes a cooling layout on a deep thin wall box. The core steel which will make the wall thickness isn’t demonstrated for readability. The red color below symbolizes the component cavity region. A vertical hole is machined and plugged as demonstrated in order to permit the water to help movement from position 1 to position 2.
F2-11
The illustration below symbolizes a cross-section for a core cooling layout. Holes are typically machined and plugged as demonstrated. The patterns could be radial or move along with the core length based on the layout.
F2-12

These illustrations display coolant moving into, splitting close to the circle cavity insert, and after that out. This layout might be linked to different inserts. 2 O-ring slots are made which will prevent leaking. A center slots is turned in order to offer 360 degrees of cooling close to the circle insert and cavity working surface.

F2-13

Cooling parts will be employed in order to handle coolant movement . All the different cooling parts is discussed on the next pages.
Pressure plugs tend to be made in order to stop or handle coolant movement within water ways. The tapered thread design comes with a seal utilizing a planned variation of taper among the water plug and the tapped opening. A hex socket head is employed for tightening. The headless model plug utilizes an extensible O-ring manipulated by rotating a hex wrench inside the plug .
F2-15
Cascade water junctions are typically employed to allow them to cool inserted cores to arrive at regions of molds. Coolant goes into the base connection and moves up the center water line, splatters over similar to a water fountain, cooling 360 degrees when it goes down and leave from the appropriate connector.

F2-16[/ezcol_1half_end]
